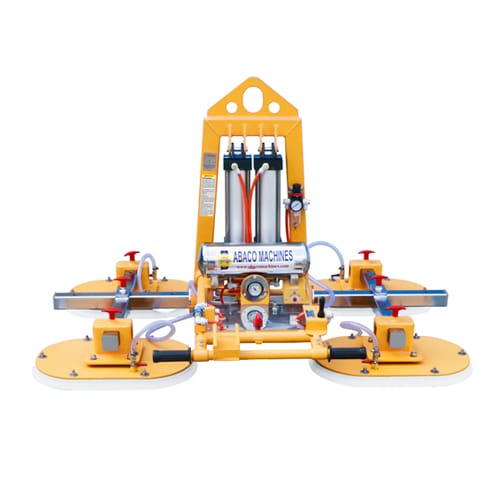

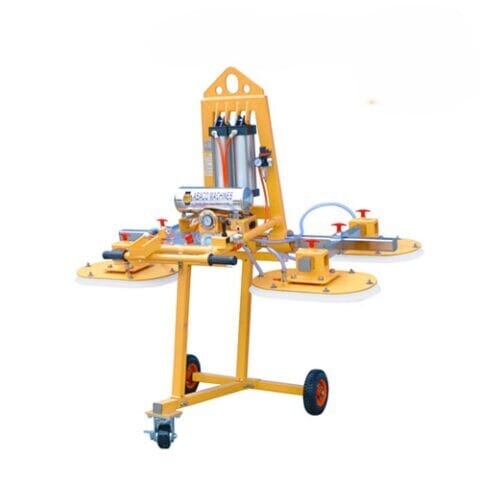

Abaco Stone Vacuum Lifter SVL100 | 4 Suction Cups

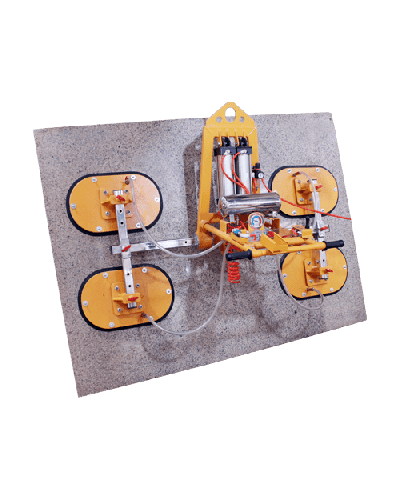

Abaco Stone Vacuum Lifter SVL100 efficiently and securely lifts, moves and places the largest and heaviest slabs up to 2,200 lbs (1000kg).  Engineered with a powerful, compact and innovative hoist design to safely lift heavy stone slabs onto processing table, moving within fab-shop or warehouse. Four Soft rubber suction pads protects stone and quarts slabs from scratching and damage.

Heavy-Duty Frame provide increased strength and durability. Adjustable, Traverse Beam Suction Cups, allows for easy flexibility to match up to custom stone slab lengths.  Abaco Stone Lifters require only 11 PSI (0.7 – 0.8 Bars) and can be utilized with the most common sized compressors, no need for a generator.  Minimum Slab Dimensions: 54″ x 31-1/2″

Technical specifications of Abaco Stone Vacuum Lifter

Abaco Stone Vacuum Lifter Series: Comparison

Abaco 100 Stone Vacuum Lifter (model SVL100) is the largest lifter in this series and comes equipped with 4 Vacuum Cups for superior lifting of the heaviest slabs.

• Minimum Slab Dimensions: 54″ (1320mm) x 31-1/2″ (800mm)
• 2,200lbs (1000kg) Lifting Capacity
• Tilt From 0˚ to 90˚

Abaco 75 Stone Vacuum Lifter (model SVL75) is a large-size lifter that comes equipped with 3 Vacuum Cups.

• Minimum Slab Dimensions: 52″ (1320mm) x 24-7/16″ (620mm)
• Maximum lifting capacity 1650 lbs (750 kgs)
• Tilt from 0°-90°

Abaco 50 Stone Vacuum Lifter (model SVL50) is a mid-size lifter that comes equipped with 2 Vacuum Cups.

• Minimum Slab Dimensions: 52″ (1320mm) x 24-7/16″ (620mm)
• Maximum lifting capacity 1100 lbs (500 kgs)
• Tilt from 0°-90°

Abaco 25 Stone Vacuum Lifter (model SVL25) is the smallest lifter with 1 Vacuum Cup.

• Minimum Slab Dimensions: 24-7/16″ (620mm) x 16-5/16″ (415mm)
• Maximum lifting capacity 520 lbs (250mm)
• Tilt from 0°-90°

Read Abaco Stone Vacuum Lifter Owner’s Manual before operating to avoid damage or risk of bodily injury.
