Innovative, Fixed Bridge-Saw & Manual Head-Feed for Stone, Quartz & Ultra-Compact Porcelain Slabs!

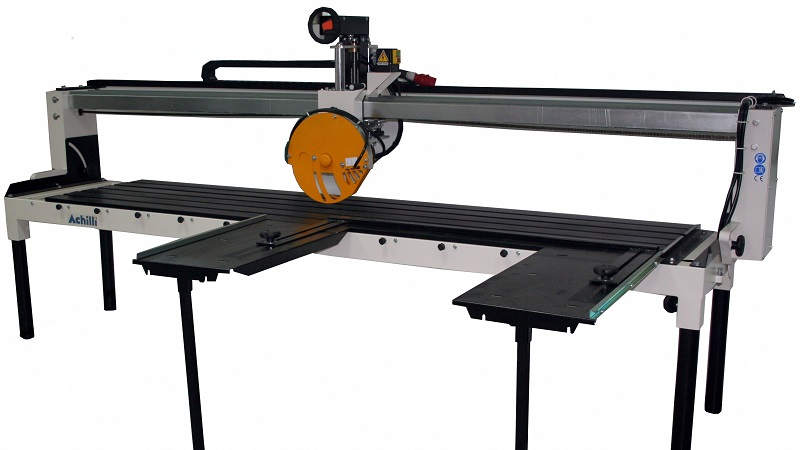

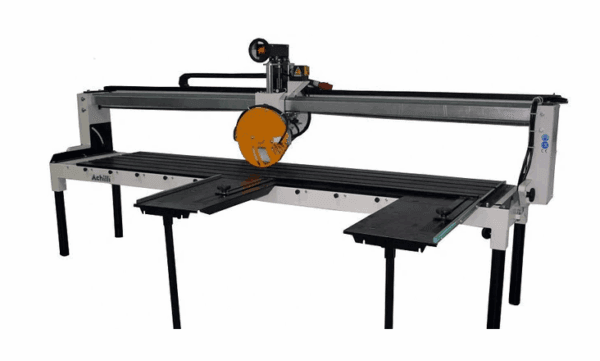

Compact, essential and sturdy saw with fixed bridge and manual head feed for marble and granite slabs; the bridge tilts and the water tank with built-in recycling pump makes it the perfect for small and large stone fabricating shops. It is equipped with 1 or 2 side extension tables to enlarge the working surface and facilitate the positioning of the slabs.
- Manual Head Feed
- Available with several useful cutting versions, according to customer requirements
- Maximum Cutting Precision Guaranteed by a special beam design
- Sturdy and compact structure to work any kinds of slabs
Technical Details
| AFR-C | AFR-C HT | |
| Cutting Range | 1500mm, 2000mm, 2500mm, 3000mm, 3300mm, 3500mm | 1500mm, 2000mm, 2500mm, 3000mm, 3300mm, 3500 mm |
| Diamond blade diameter | 250mm (10″), 300mm (12″), 350mm (14″) | 400mm (16″), 450mm (18″), 500mm (20″) |
| Blade bore size | 1″ (25.4mm) | 1″ (25.4mm) |
| Motor power | 3kW = 4HP (3-Phase) | 4kW = 5.5HP (3-Phase) |
| Motor rotation speed | 2800 rpm a 50Hz | 3400 rpm a 60Hz | 1400 rpm a 50Hz | 1700 rpm a 60Hz |
| Standard voltage/ frequency | 400V-50/60Hz | 230V-60Hz (3-Phase) | 400V-50/60Hz | 30V-60Hz (3-Phase) |
Manual Head Feed: 1500mm (59″), 2000mm (79″), 2500mm (98.5″), 3000mm (118″), 3300mm (130″), 3500mm (138″)

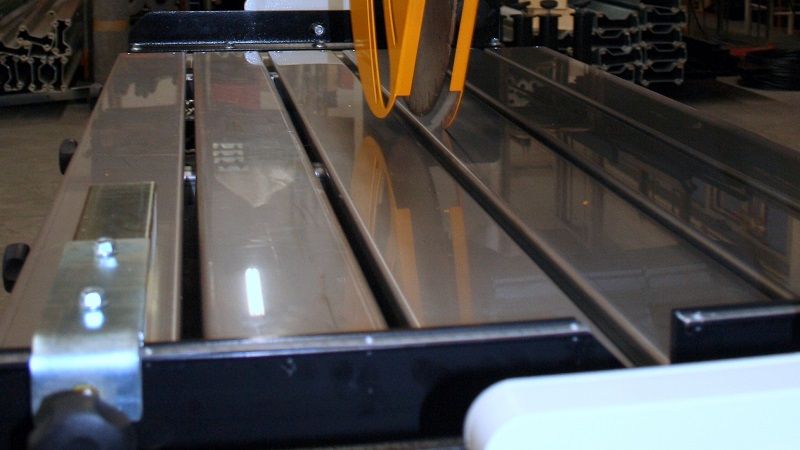

Worktable Made of Galvanized Steel Rails
Custom Depth Adjustment

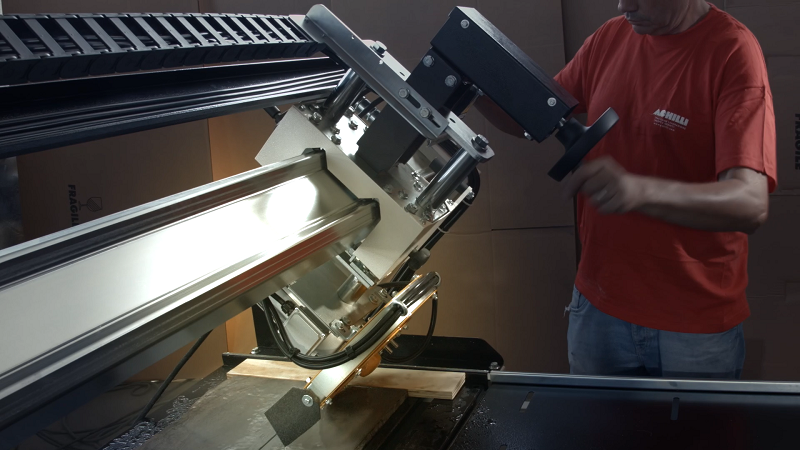

Manual Bridge Tilt from 90 to 45 Degrees
