Innovative, Fixed Bridge-Saw for Stone, Quartz & Ultra-Compact Porcelain Slabs!

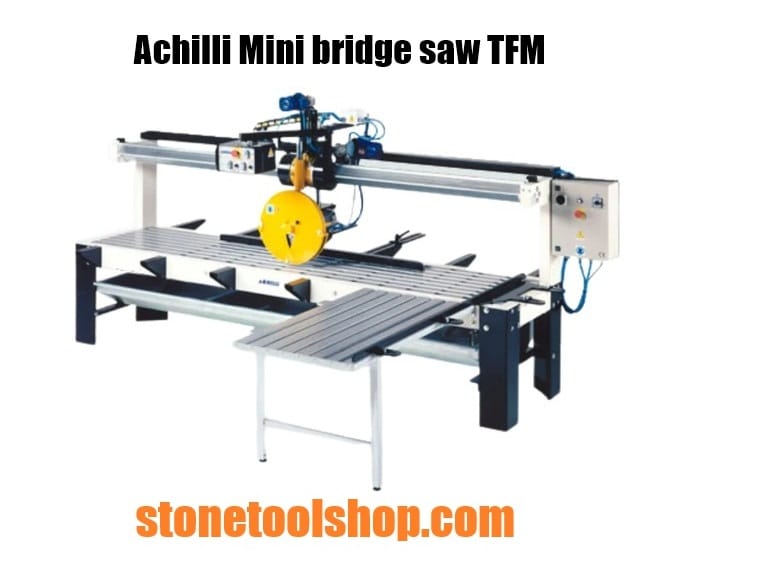

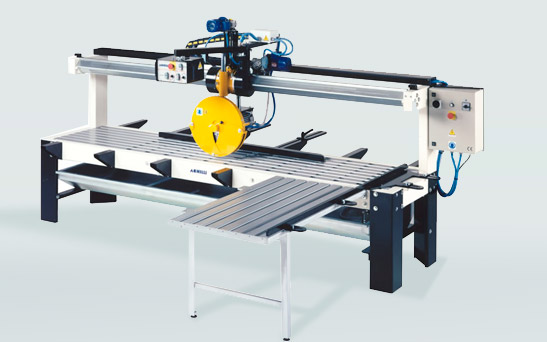

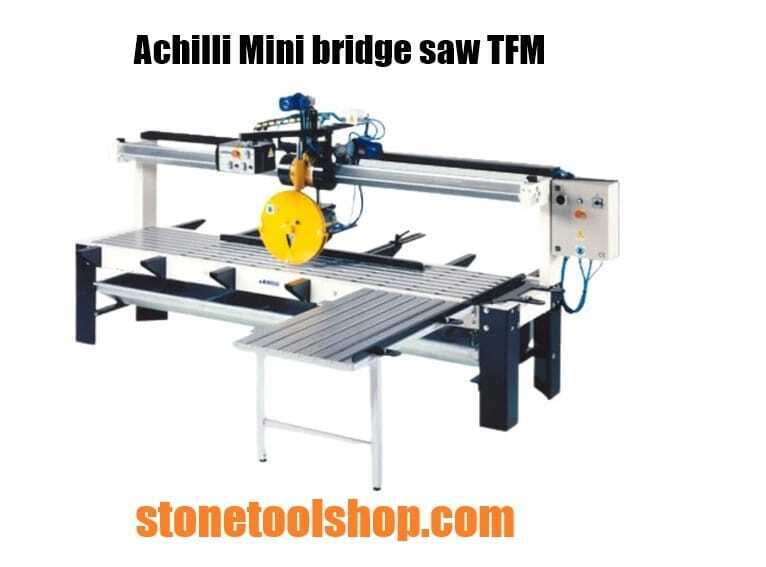

Achilli Mini Bridge Saw TFM (Monoblock), Fixed Bridge-Saw for high production cutting of marble, granite, quartzite, quartz and ultra-compact porcelain slabs. Comes equipped with a compressed, rectified and chromed Active Beam for the most precision accuracy possible.
Achilli Mini Bridge Saw TFM worktable extensions widen the worktable facilitating the positioning of large slabs and the head feed is motorized with variable speed adjustment in both directions. A special optional device permits to carry out parallel cuts.
Achilli Mini Bridge Saw TFM Specifications:
- Customizable to Fab-Shop Requirements
- Equipped w/ Specially Designed Beam Providing the Utmost in Accuracy

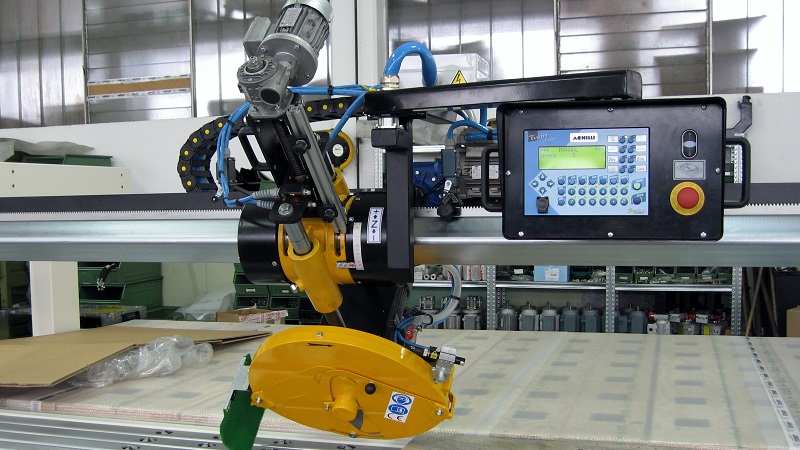

- Optional PLC Control Unit for Step-Cut Programming
- Extremely Accurate Cutting on Natural Stone, Quartz & Ultra-Compact Slabs
- Motorized Head Control w/ Variable-Speed on X-Axis (both directions)

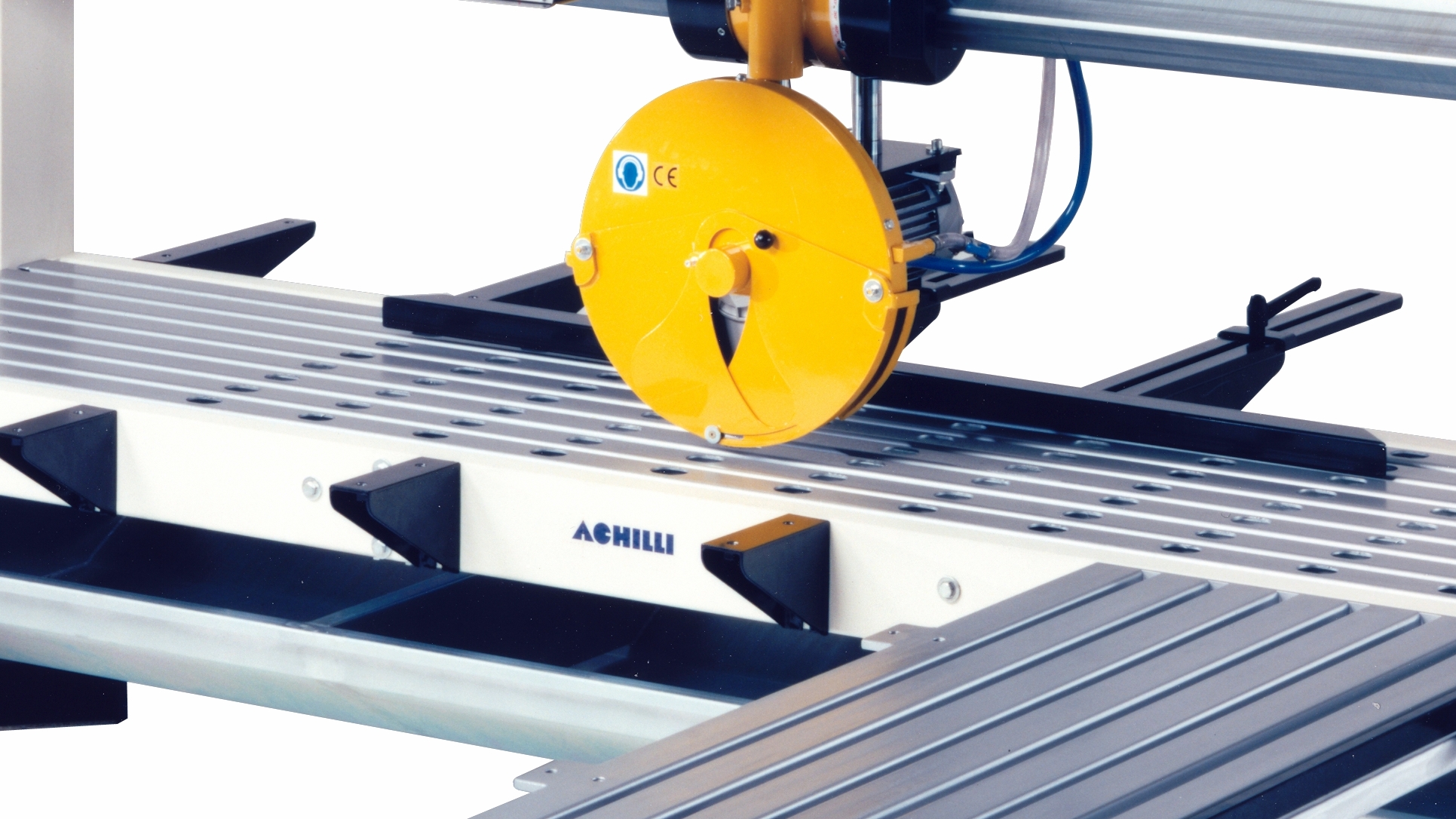

Flexible Worktable is Equipped w/ 6 Extensions & Side-Stop to Efficiently Accommodate Larger Slabs & Large Format Pieces
| X Axis Travel | 3100mm (122″ or 3700mm (146”) |
|---|---|
| Z Axis Travel | 380mm (15’’) |
| Worktable Dimensions | 3695mm (145-1/2) × 900mm (35-1/2) |
| Diamond Blade Diameter | 300-400mm (12″-16″) or 400-625 mm (16″-25″) |
| Arbor Size | 50mm |
| Motor Power | 7.5kW = 10HP | 11kW = 15 HP (3-Phase) |
| Main Motor RPM | 1400 RPM 50Hz – 1700 rpm 60Hz |
| Standard Voltage | Frequency | 400V-50/60Hz | 230V-60Hz 3-Phase |
Heavy-Duty Steel Frame with Sandblasted & Hardened Ceramic Coating for the Toughest Conditions

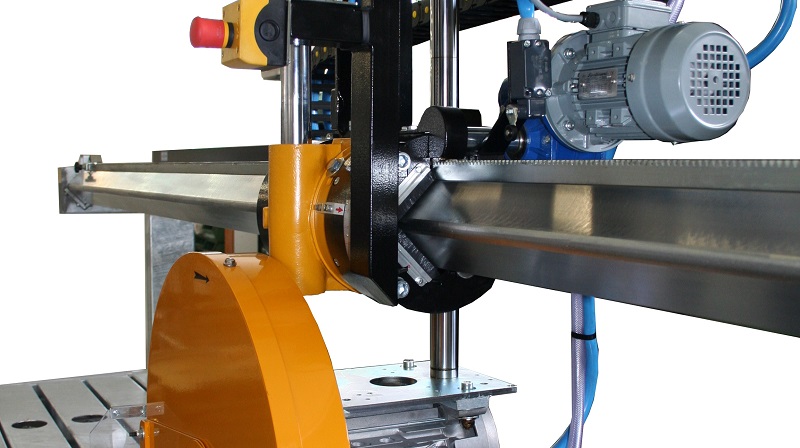

Head Tilt from 90° to 45° for Precision Miter Cutting

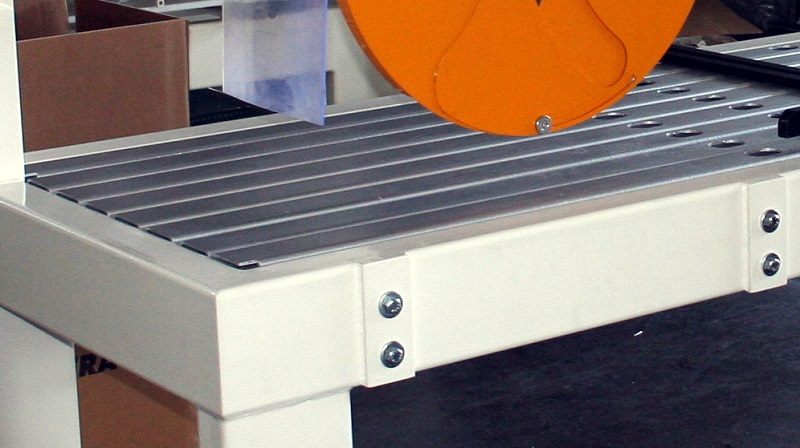

Worktable Made of Strong Galvanized Steel Rails

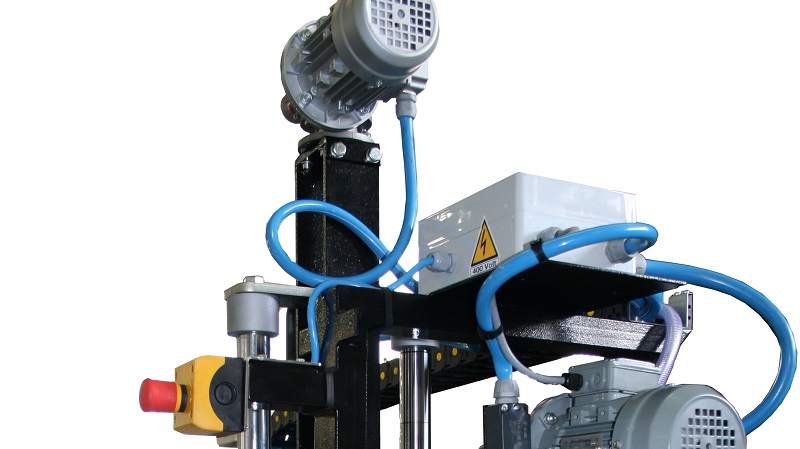

Motorized Cutting Depth Adjustment Along Z-Axis by Geared Motor
Motorized Directional Head w/ Variable Speed on X-Axis (both directions) & Motorized Depth Adjustment Along Z-Axis by Geared Motor
